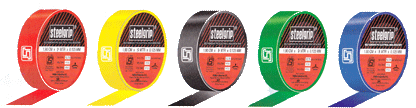

Steelgrip
The No.1 selling PVC Insulation Tape
FEATURES
Firm grip
High insulation resistance
Water proof, weather proof, non ageing Self-extinguishing
Available in different colours.
USES
Insulation of electrical wire joints
Colour coding (3 phase wiring)
Insulating cable lugs in meter panels
Insulating cable joints in submersible pumps.
USER SEGMENT
Electricians
Household
Electricity Boards
Railways
Telecom companies
Defense companies
Transport companies
SIZES
1.25cm x 10m
1.8cm x 2.5m
1.8cm x 6.5m
2.5cm x 25m
BENEFITS
Ensure long lasting insulation
Ensures complete insulation on wiring under different usage and environment conditions.
Does not allow source of fire to be spread.
Useful for colour coding and where multiple joints have to be demarcated distinctly.
USAGE
Cut electrical tape up to the length required.
Wrap 2-3 times or more on the wiring till the wire/joint is covered properly.
APPLICATIPON
For insulation of electrical wiring and equipment
SPECIAL INFORMATIPON
Shelf life: 12 months from the date of manufacture.
Q.Where are the various sizes used in Steelgrip?
Ans The smaller size i.e. 1.9cm (Width) X 10m/5m,is used primarily by small electricians and household consumers.
The larger size i.e.25m length tapes are primarily used in the industries.
Q.What are the uses of the various colous available in each SKU?
Ans The different colours in the tape are required in applications like colour coding e.g.3 phase wiring.
Q.What are the ISI specification adhered to by Steelgrip?
Ans Electrical strength at room temperature 40KV/mm thickness (min)
Adhesion to Steel 1.6N/10mm Width (min)
Adhesion to backing 1.3N/10mm Width (min)
Electrical strength after humid conditioning 35KV/mm thickness (min)
Flammability Self extinguishing
Insulation resistance 10 raise to 11 ohms(min). |
